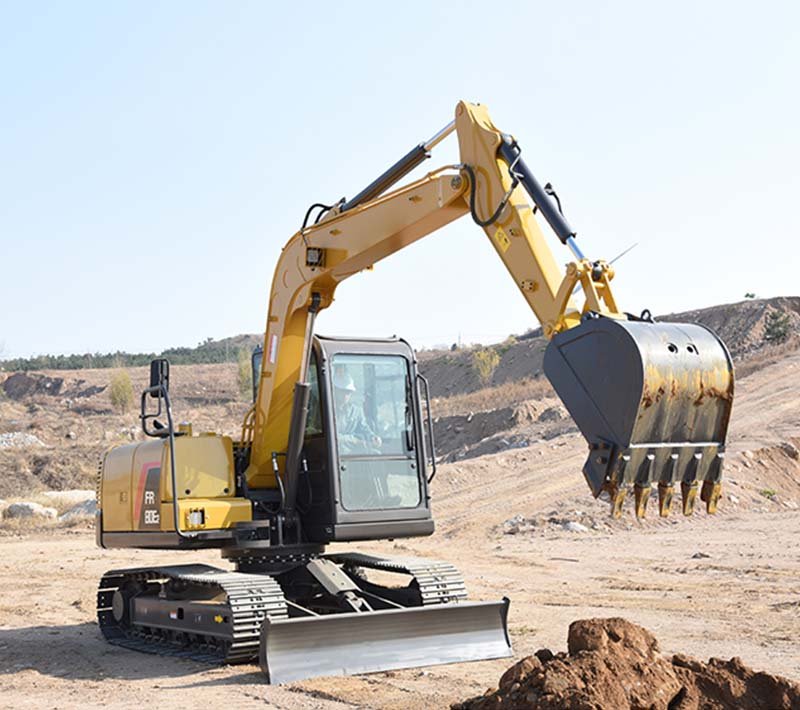

| FR80E2 | ||
| Rated Power | kW/rpm | 44.4/2100 |
| Bucket Capacity | m³ | 0.3 |
| Operating Weight | kg | 7650 |
| Engine | ||
| Engine Model | YANMAR 4TNV98 | |
| Number of Cylinders | 4 | |
| Max. Torque/Speed | N·m/rpm | 237/1400 |
| Displacement | L | 3.32 |
| Main Performance | ||
| Bucket Digging Force | kN | 56 |
| Arm Digging Force | kN | 38 |
| Max. Traction Force | kN | 61 |
| Max. Walking Speed | km/h | 4.3 |
| Min. Walking Speed | km/h | 2.7 |
| Rotary Speed | r/min | 11.5 |
| Gradeability | ° | 35 |
| Ground Pressure | KPa | 35.1 |
| Hydraulic System | ||
| Max. Main Pump Flow | L/min | 144 |
| Main Safety Valve Pressure | MPa | 28 |
| Oil Capacity | ||
| Fuel Tank | L | 160 |
| Hydraulic Tank | L | 100 |
| Engine Oil | L | 5-9.4 |
| Dimensions | ||
| Shipping Length | mm | 6100 |
| Shipping Ground Length | mm | 3665 |
| Boom Height | mm | 2575 |
| Shipping Width | mm | 2275 |
| Cab Height | mm | 2650 |
| Ground Clearance of Counter weight | mm | 820 |
| Min. Ground Clearance | mm | 378 |
| Tail Turning Radius | mm | 1830 |
| Wheel Tread | mm | 2130 |
| Track Length | mm | 2770 |
| Track Gauge | mm | 1700 |
| Track Shoe Width | mm | 450 |
| Hood Height | mm | 1750 |
| Rotary Platform Width | mm | 2275 |
| Scope of Work | ||
| Max. Digging Height | mm | 7150 |
| Max. Dumping Height | mm | 5030 |
| Max. Digging Depth | mm | 4050 |
| Max. Vertical Digging Depth | mm | 3670 |
| Max. Digging Radius | mm | 6335 |
| Max. Ground Digging Radius | mm | 6190 |
| Min. Turning Radius | mm | 1770 |
| Dozer Blade Lifting Height | mm | 375 |
| Dozer Blade Falling Height | mm | 295 |
| Other Specifications | ||
| Boom Length | mm | 3708 |
| Arm Length | mm | 1650 |
| Track Section Number（each side） | 38 | |
| Track Roller Number | 5 | |
| Dozer Blade Height | mm | 425 |
